Hydrodrive MF350W Outboard Hydraulic Steering System — Maximum Control for High-Horsepower Boats
Hydrodrive MF350W Outboard Hydraulic System
The Hydrodrive MF350W Hydraulic Steering System is built for serious power and precision. Engineered for outboard engines up to 350 HP, this premium steering system delivers unmatched control, smooth handling, and long-lasting reliability for demanding boaters. Whether you run offshore center consoles, RIBs, performance craft, or commercial vessels, the MF350W provides effortless steering and total confidence at any speed.
Constructed with marine-grade anodized aluminum, heavy-duty seals, and corrosion-resistant hardware, the MF350W is designed to excel in both saltwater and freshwater environments. Its high-precision TL2-30 helm pump and robust MC350W cylinder ensure incredibly smooth steering—even under extreme torque loads from modern high-horsepower outboards.
With proven performance and global trust across professional and recreational markets, Hydrodrive remains one of the most reliable hydraulic steering solutions available today.

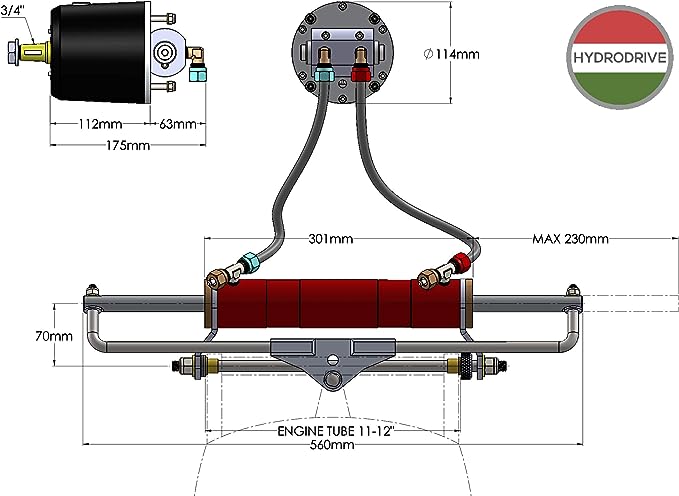

Technical Specifications Hydrodrive MF350W Outboard Hydraulic System

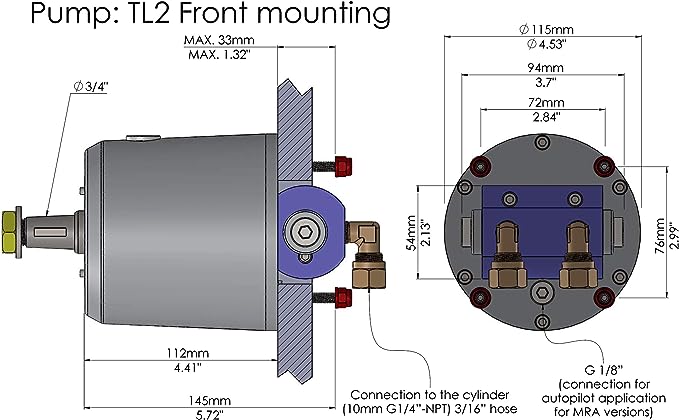

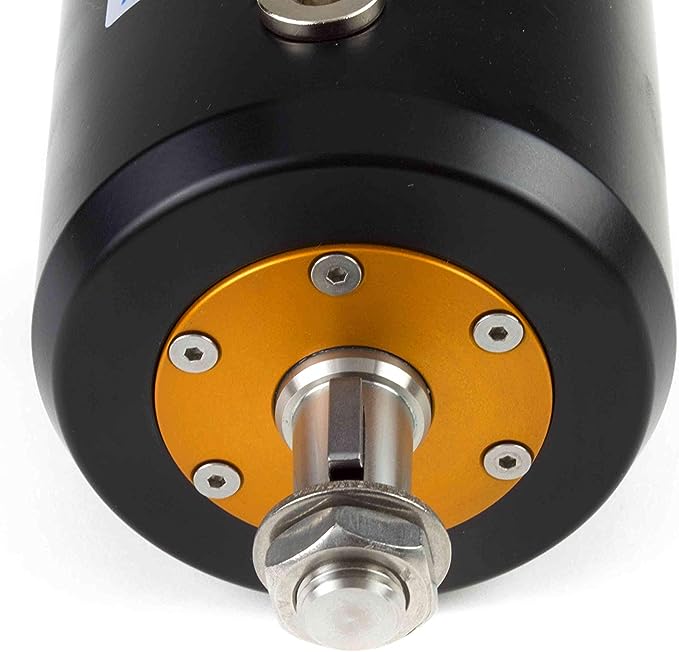

Hydraulic Pump
-
High-precision TL2-30 MRA helm
-
28 cc/rev output
-
5.2 turns lock-to-lock
-
Hardened, hot-pressed aluminum construction
-
Anodized and CNC-machined pump housing
-
Removable cup for easy seal replacement without opening the pump

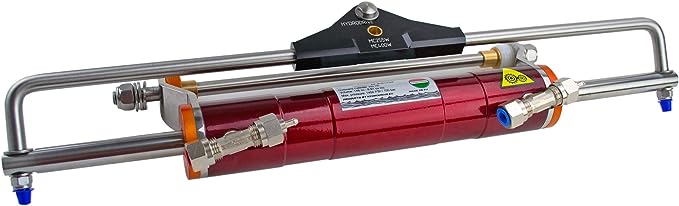

Hydraulic Cylinder (MC350W)
-
146 cc volume
-
206 mm stroke
-
New engine plate with two-position mounting system for perfect alignment
-
Cold-drawn, hardened, anodized, and painted aluminum
Included Components
-
7 + 7 m (23 ft) high-pressure twin hose set with fittings
-
2 liters of hydraulic oil (E-HVLP 46, +60° / –30° temperature range)
-
Stainless steel fixing hardware
-
Universal fittings compatible with all major outboard brands
Performance
-
Output force: 495 kg (1,090 lbf)
-
Torque: 102 Kgm (738 lb-ft)
-
Max speed: 60 knots
-
Designed for heavy-duty, high-speed applications
🔧 Key Features Hydrodrive MF350W Outboard Hydraulic System
-
Rated for outboards up to 350 HP — ideal for high-performance rigs
-
Ultra-smooth, zero-play hydraulic steering for precise control
-
Heavy-duty helm pump engineered for extreme torque conditions
-
Corrosion-resistant components built for saltwater & offshore use
-
Universal compatibility: Yamaha, Mercury, Suzuki, Honda, Evinrude, Tohatsu & more
-
Low-maintenance design with long-life seals and premium hydraulic lines
-
Easy installation thanks to universal fittings and stainless mounting system
🚤 Hydrodrive MF350W Outboard Hydraulic System Ideal For
-
Offshore center consoles
-
High-performance RIBs and inflatables
-
Sportfishing boats
-
Commercial workboats
-
High-speed recreational boats
-
Heavy outboard engines up to 350 HP
If you demand maximum steering power, stability, and precision from your big-horsepower outboard, the Hydrodrive MF350W stands among the strongest and most trusted systems in the marine industry.
🌎 Worldwide Shipping From Boat Parts Warehouse
Boat Parts Warehouse offers fast, secure global shipping with professional packaging and dependable customer support. Every Hydrodrive system is delivered safely and backed by our commitment to premium marine performance products.
