Hydrodrive MF75W Outboard Hydraulic Steering System – For Engines up to 75HP
Upgrade your boat’s handling with the Hydrodrive MF75W Hydraulic Steering System, engineered for outboard engines up to 75 horsepower. Designed for smooth, precise, and reliable steering, this system is ideal for fishing boats, RIBs, center consoles, and small leisure craft. Hydrodrive’s proven European engineering ensures long-term durability, effortless maneuvering, and safer control in all water conditions.
Hydrodrive MF75W Outboard Hydraulic system for engines up to 75 HP with fixed cylinder.
Universal application

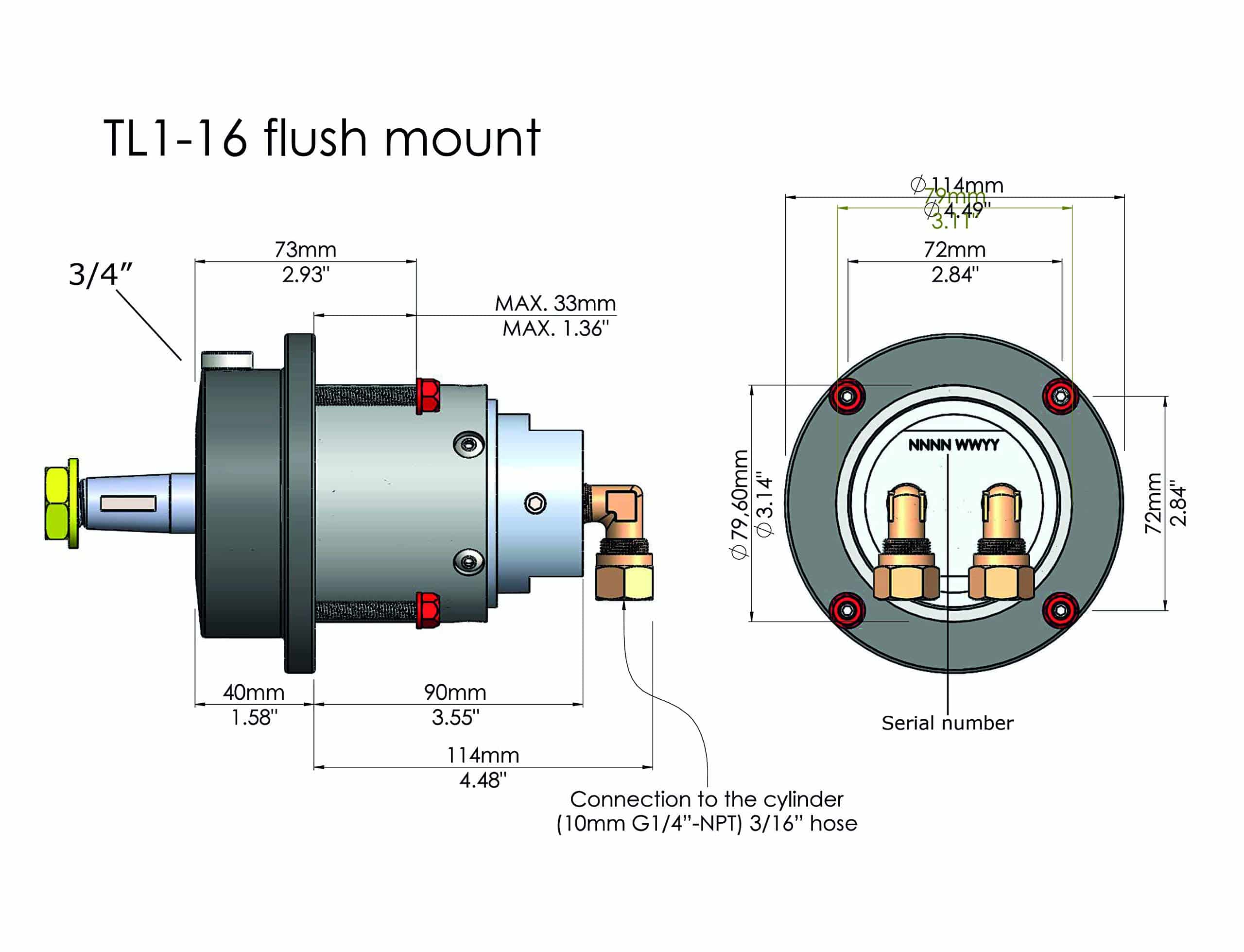

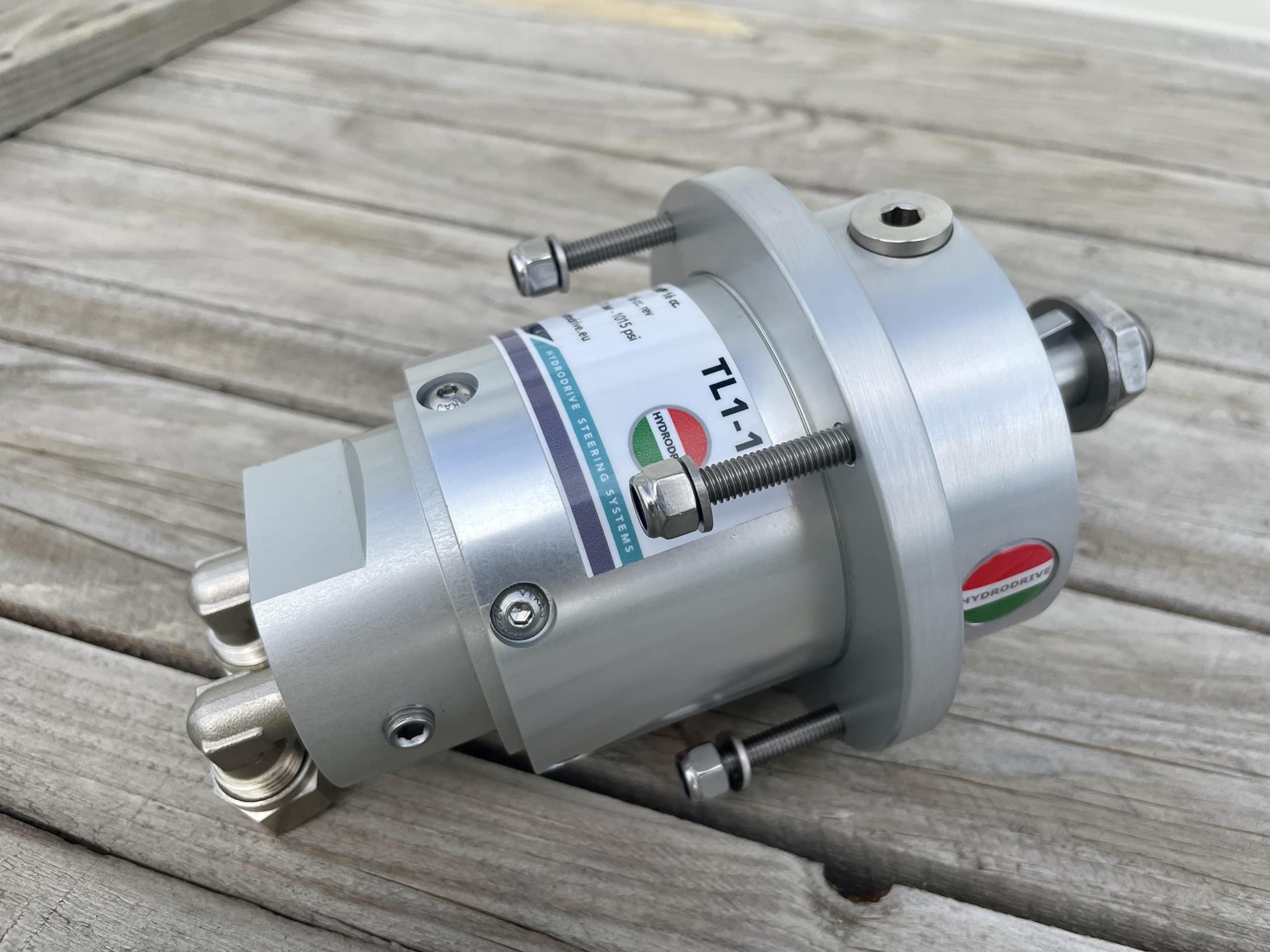

• Hydraulic Pump: TL1-16, 16 cc pump, max 60 bar

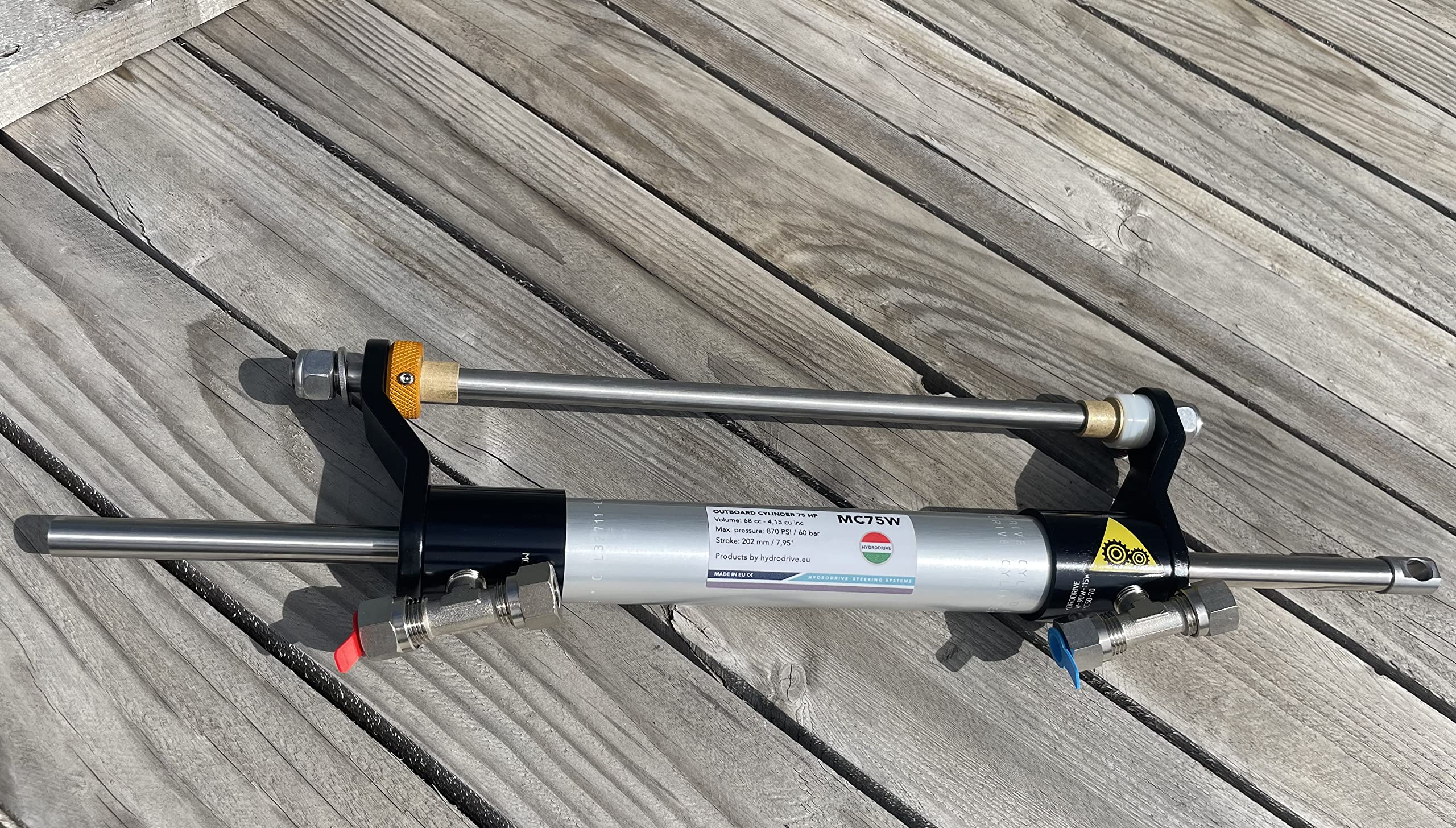

• Hydraulic cylinder: MC 75W, 68 cc volume, Max 60 bar, Stroke 202 mm
• 4+4 m (13′) high-pressure twin hose set with fittings, 1 L hydraulic oil (E-HVLP 46) (temp.+60°/-30°.)
• Turns: 4,4
• Output force: 220 kgf (485 lbf)
• Torque: 46 kgm (333 lbf-ft)
• Max speed: 30 knots (55 km/h)
The MF75W system provides low-friction steering, high-pressure reliability, and outstanding corrosion resistance—perfect for both freshwater and saltwater use. Whether you’re trolling, cruising, or navigating tight marinas, this hydraulic kit delivers a premium steering experience without the heavy effort of mechanical setups.
⭐ Key Features Hydrodrive MF75W hydraulic steering system
-
Compatible with outboards up to 75HP – perfect for mid-range engines.
-
Smooth, low-effort steering thanks to Hydrodrive’s high-precision hydraulic pump.
-
High-strength cylinder designed for stability and long lifespan.
-
Corrosion-resistant materials ideal for saltwater & freshwater.
-
Easy installation with all components included.
-
Zero-play steering for improved control and safety.
-
CE-certified quality engineered in Europe and trusted worldwide.

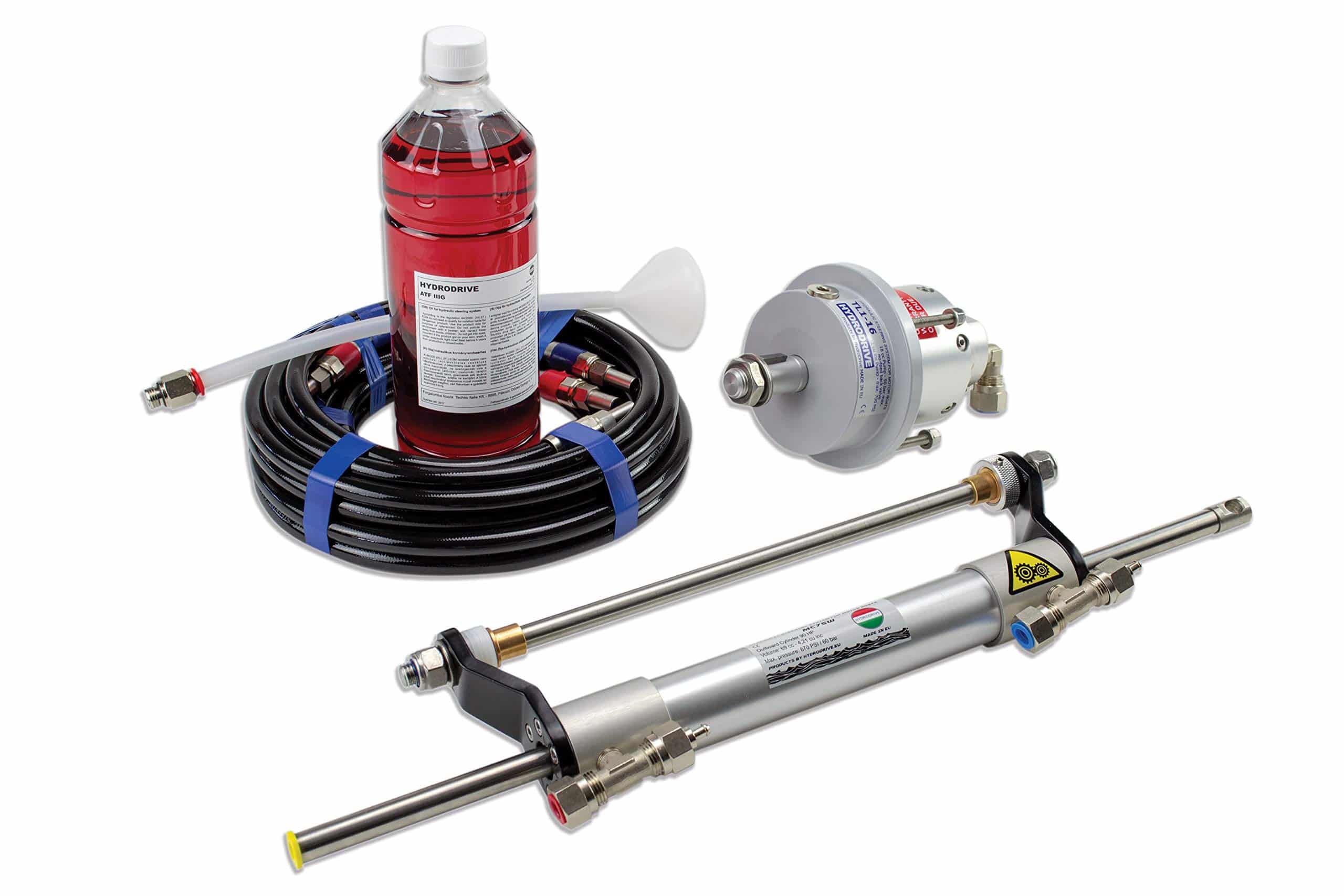

🔧 What’s Included
-
Hydraulic helm pump
-
Steering cylinder
-
Oil reservoir
-
Hydraulic hoses
-
Mounting hardware
-
Installation manual
📌 Why Choose Hydrodrive MF75W hydraulic steering system?
Hydrodrive hydraulic systems are known for their exceptional reliability and efficiency, making them a top upgrade for boat owners looking for better control and reduced steering effort. This MF75W model is specifically built for the 40–75HP engine range, offering exceptional value and performance.
🚚 Worldwide Shipping From Boat Parts Warehouse
This product ships globally from BoatPartsWarehouse.com, ensuring fast delivery, secure packaging, and expert customer support. Perfect for DIY installers and professional marine technicians.
