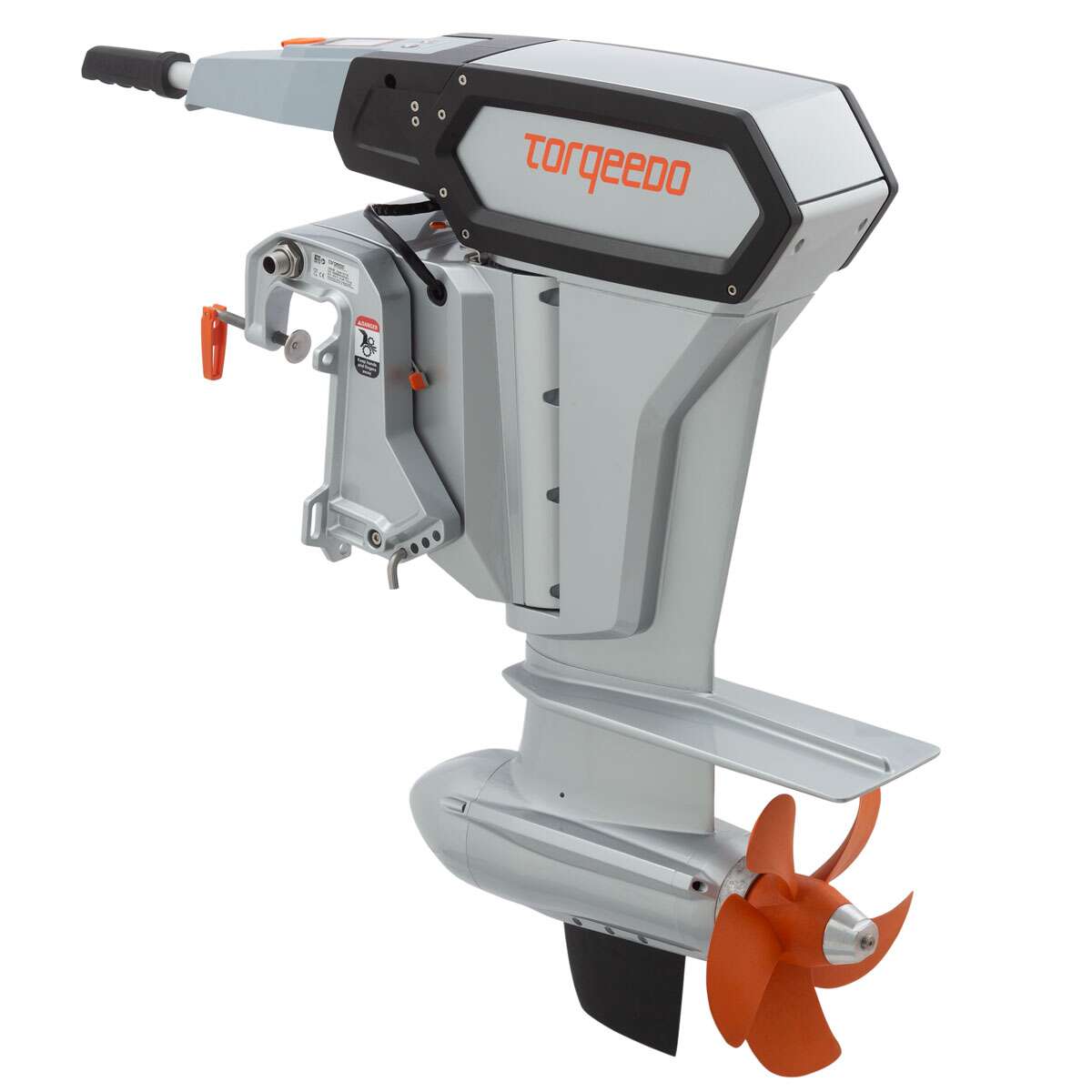

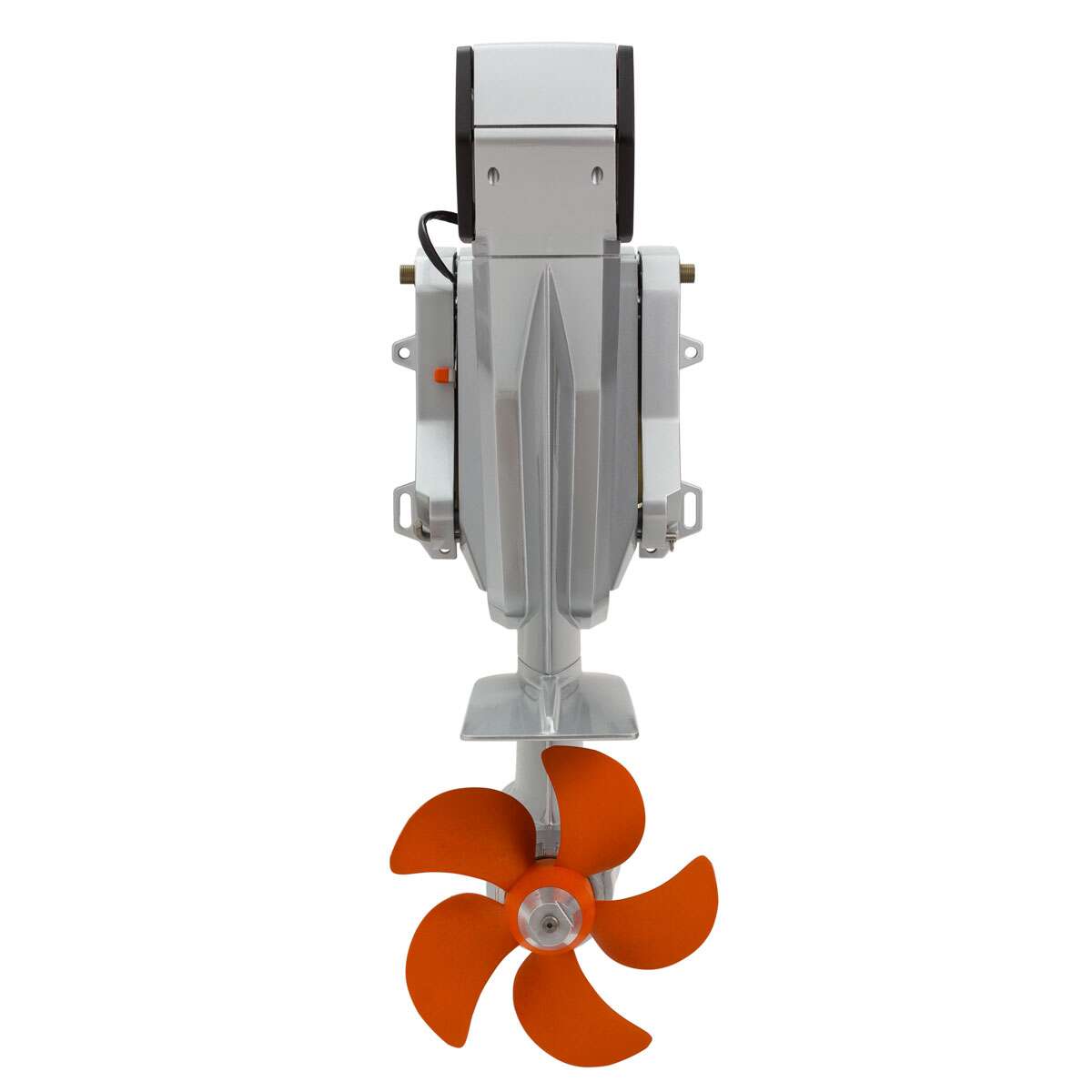

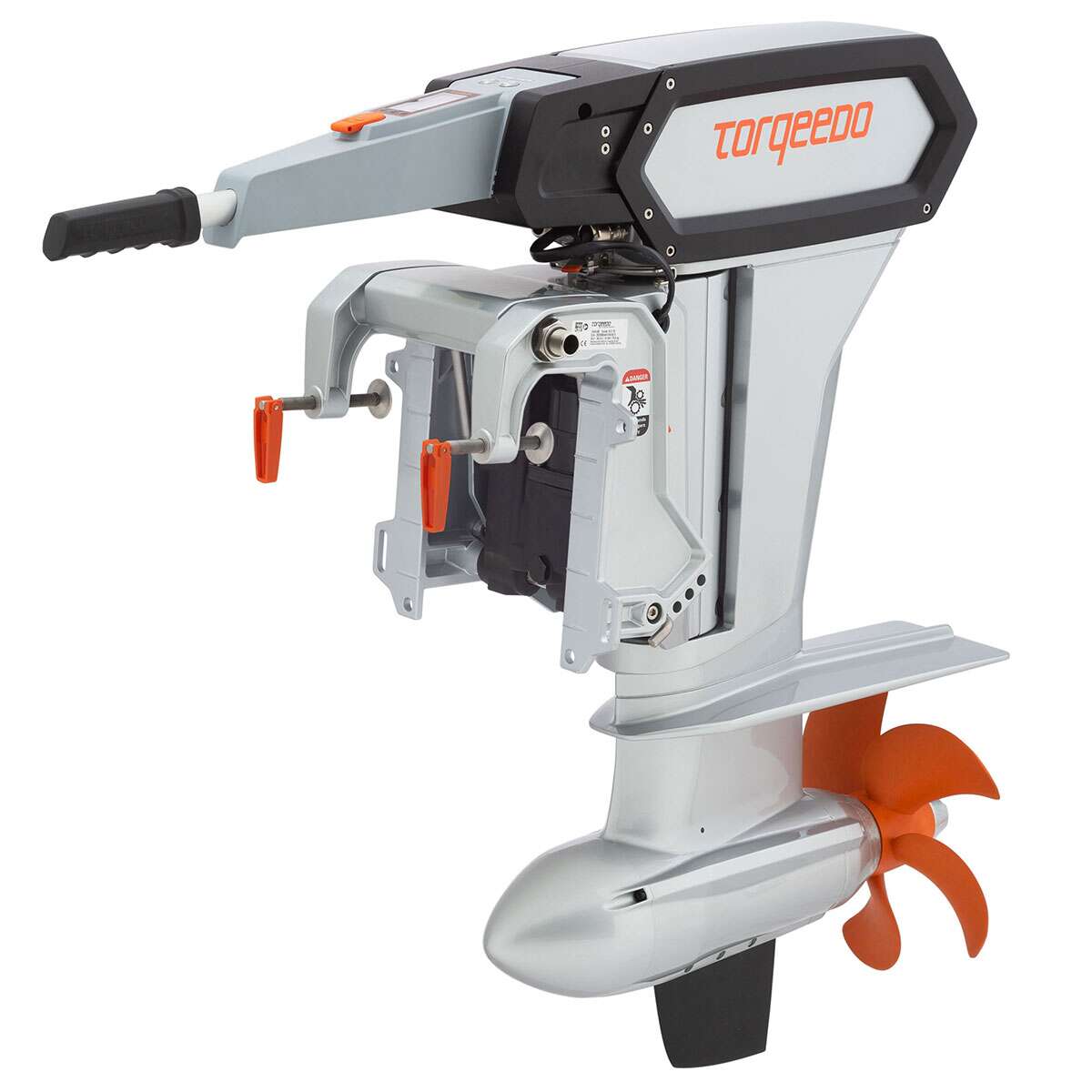

Cruise motors are the electric outboard motor of choice for motorboats, dinghies and commercial users. All Cruise systems have a built-in GPS with onboard computer and display with speed and input power, state of charge and remaining range, with a compact, low-drag, and lightweight pylon due to advanced helical gear design. Cruise 10.0 T is a tiller-equipped 48-Volt, 20 horsepower-equivalent outboard perfect for boats up to 10 tons.
[vc_custom_heading text=”Cruise 10.0 T – Benefits:” use_theme_fonts=”yes”]
- High-efficiency outboard with 10,000 W input power, equivalent to the thrust of a 20 HP petrol outboard
- Pair with two Power 48-5000 for maximum performance and accurate range/runtime functionality
- Also compatible with third-party batteries (48-Volt) but careful matching to motor power requirements is needed and addition of cable set part number 1979-00 is required. Power 48-5000 is strongly recommended for best motor performance.
- T models are equipped with tiller control with display screen and magnetic kill switch (included in scope of delivery)
- Rugged pylon with integral fin – extra protection when running aground
- Highest-grade seawater-proof aluminum for long service life, even in the harshest conditions
- Comprehensive galvanic corrosion protection through careful matching of all materials and meticulous isolation of materials with different electrochemical properties. Ships with anode set for fresh and saltwater.
- Item number: 1243-20 | EAN: 4260113696194
- Equipment included: Motor with tiller control and integrated on-board computer with display, emergency stop magnetic chip, connection cable set for two Power 48-5000 batteries (total length approx. 4.5 m) incl. main switch and battery terminal screws, 5-pin data cable (5m), standard propeller v22/p10k and sacrificial anodes (Al)
- The TorqLink Gateway Set (2217-00) is required for operation. This is not included in the scope of delivery
- Warranty: 2 years for non-commercial use
[vc_images_carousel images=”54217,54219,54222″ img_size=”full” speed=”3000″ autoplay=”yes”]
[vc_custom_heading text=”Products for Cruise 10.0″ font_container=”tag:h2|text_align:center” use_theme_fonts=”yes”]
Technical Data Cruise 10.0 T
| Cruise 10.0 T | |
|---|---|
| Input power in watts | 10,000 |
| Propulsive power in watts | 5,600 |
| Comparable petrol outboards (propulsive power) | 20 HP |
| Comparable petrol outboards (thrust) | 25 HP |
| Maximum overall efficiency in % | 56 |
| Static thrust in lbs* | ≤ 405 |
| Integrated battery | – |
| Nominal voltage | 48 |
| Final charging voltage | – |
| Total weight in kg | 60.3 (S) / 61.8 (L) / 63.0 (XL) |
| Motor weight without battery in kg | – |
| Weight of integrated battery | – |
| Shaft length in cm | 38.5 (S) / 51.2 (L) / 63.9 (XL) |
| Standard propeller v = speed in km/h at p = power in watts |
v22/p10k |
| Alternative propeller options | v32/p10k & v15/p10k |
| Propeller Guide | |
| Maximum propeller speed in rpm | 1,400 |
| Control | Remote throttle |
| Steering | Provision to connect to standard remote steering |
| Tilting device | Electrohydraulic tilt device with overload protection. |
| Tilt angle | +-45° |
| Trim device | Manual, 4-step |
| Integrated on-board computer | Yes |
| Stepless forward/reverse drive | Yes |
* Torqeedo static thrust measurement is based on internationally accepted ISO standards. Static thrust figures for conventional trolling motors are typically measured differently, which results in higher values. To compare Torqeedo static thrust data with conventional trolling motors, add approximately 50% to the Torqeedo static thrust values.
